RMS DATASHEET
WIREWOUND NAKED POWER RESISTORS
0.5KW ÷ 3.5KW

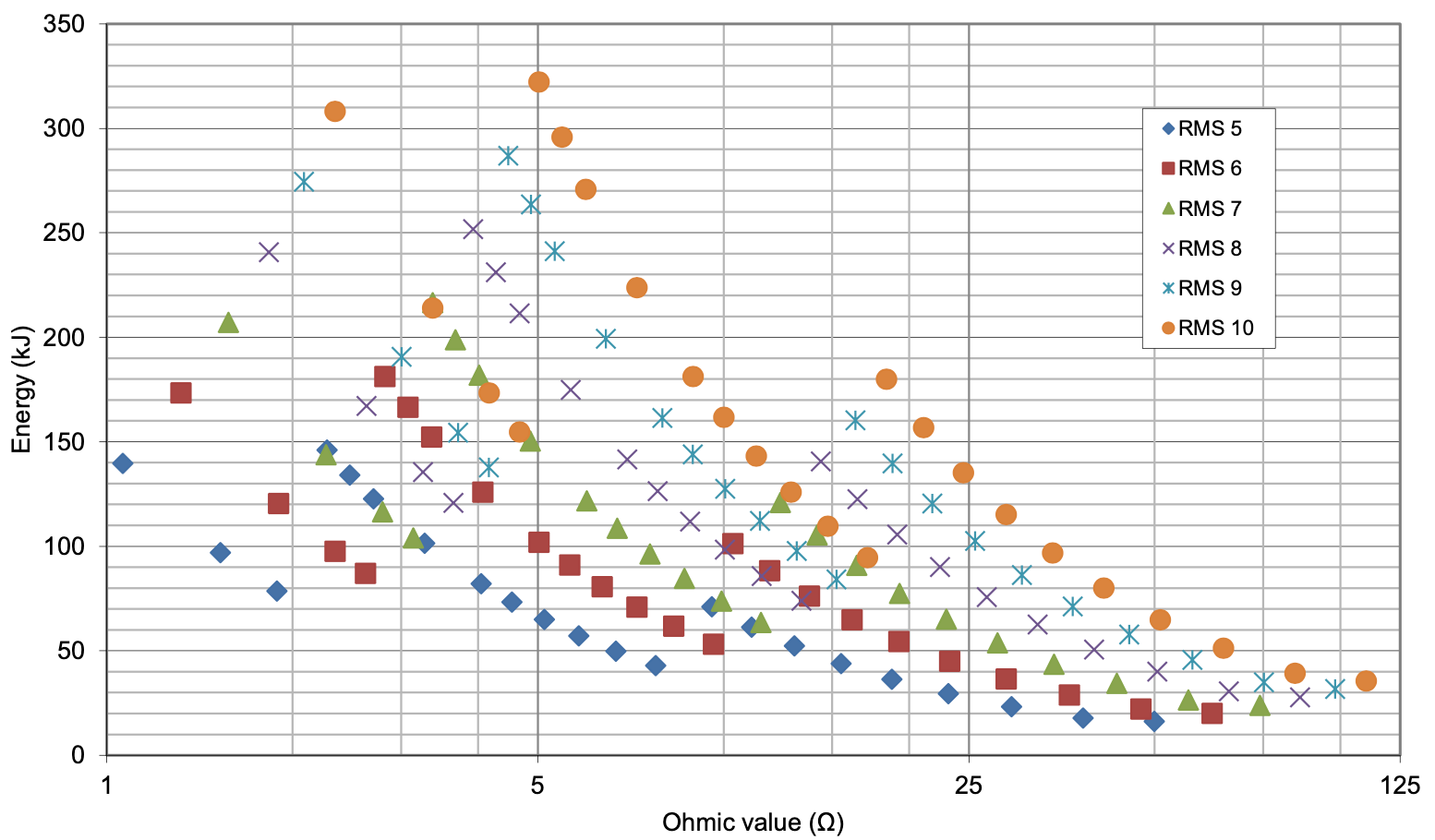

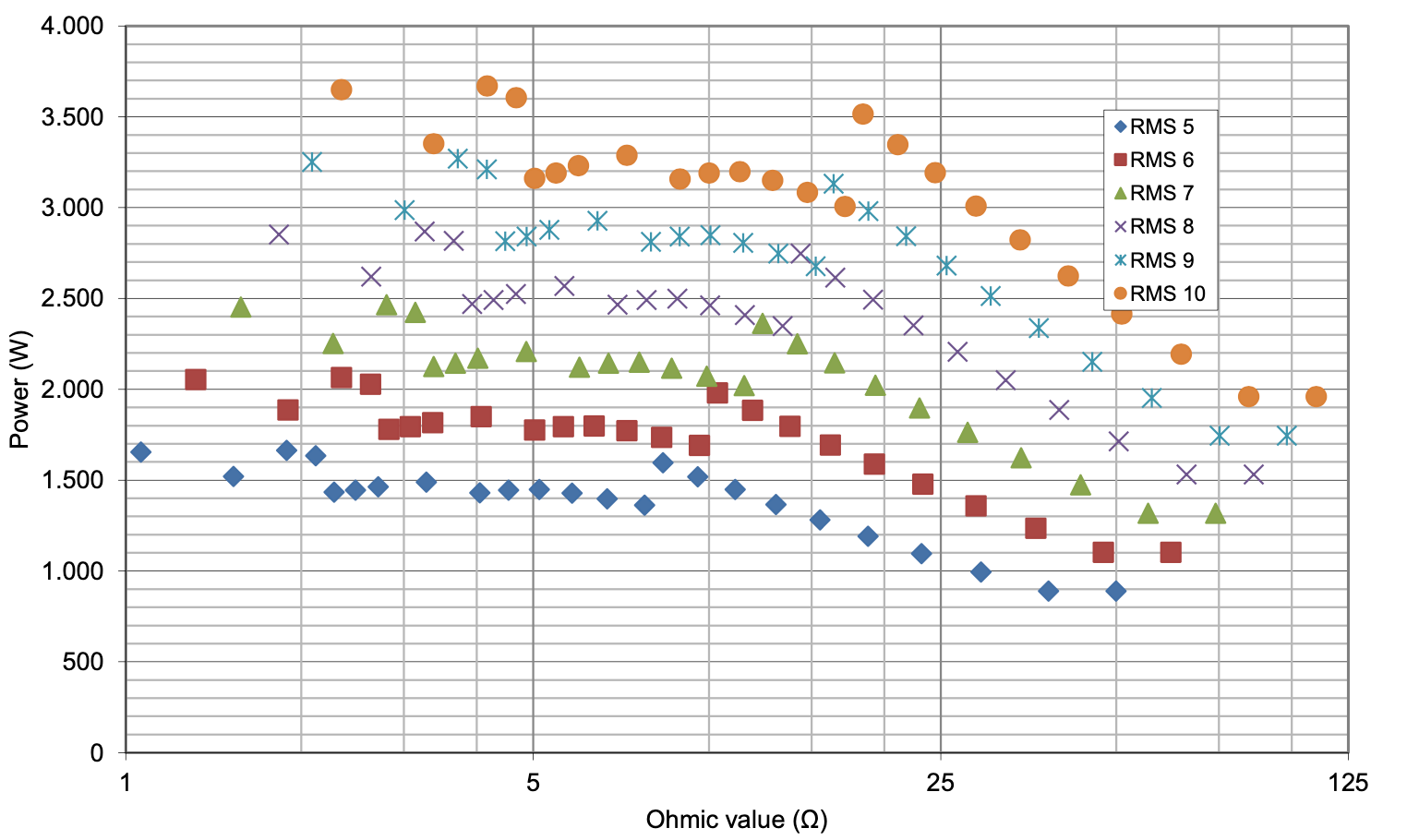

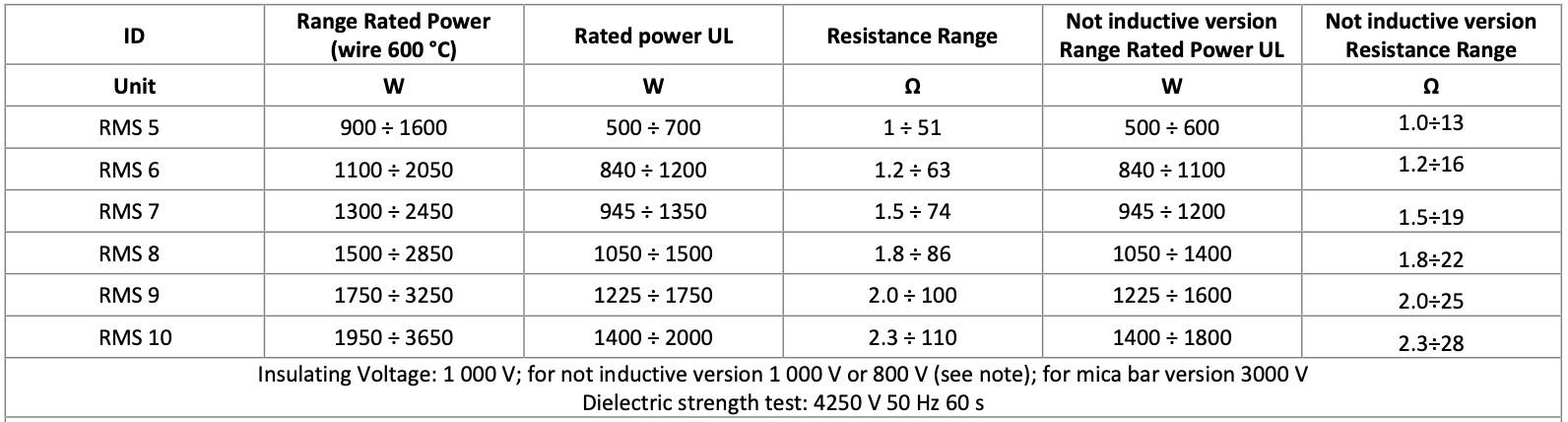

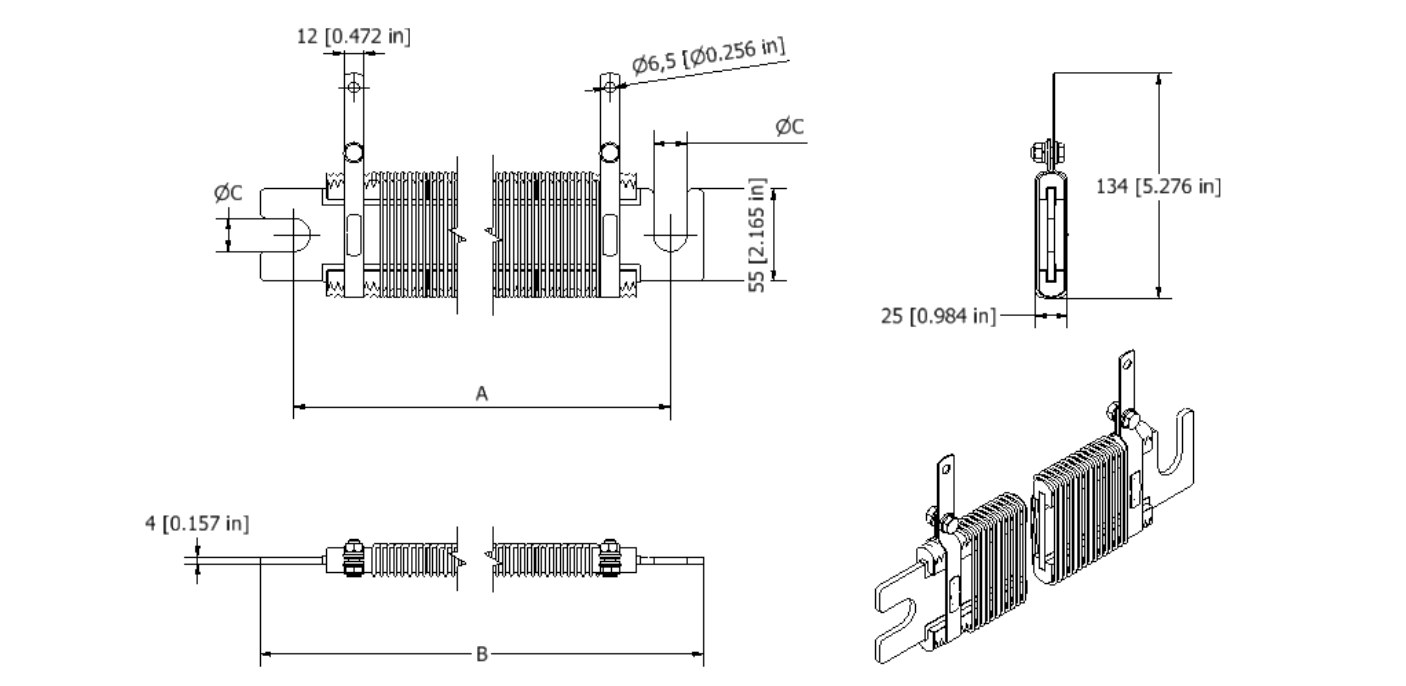

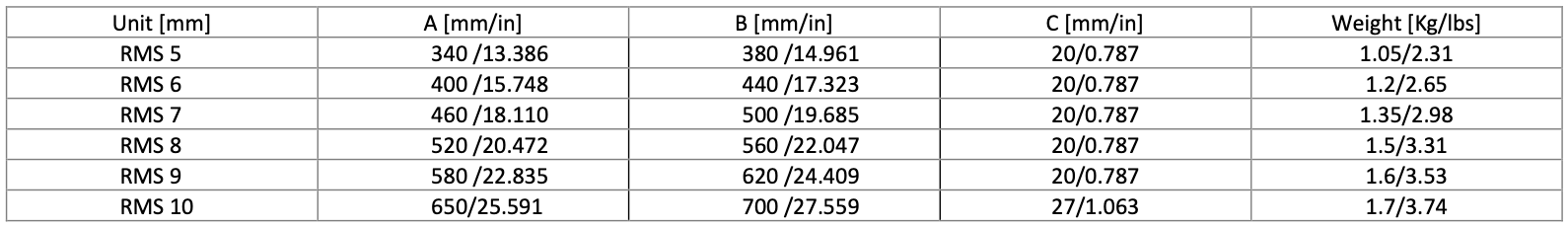

Marking
The resistor is marked on the collar with indelible ink high temperature
FAIRFILD – RMS 5 15R 5% WW/YY (week / year)
The resistor is marked on the collar with indelible ink high temperature
FAIRFILD – RMS 5 15R 5% WW/YY (week / year)
Installation
In case of group mounting keep a distance of at least 30 mm between consecutive resistors.
In case of group mounting keep a distance of at least 30 mm between consecutive resistors.
Packing
The resistor is packed in a way to preserve incidental damages due to transport. The resistor is made by ceramic parts, accidental fall can damage it, handle with care.
The resistor is packed in a way to preserve incidental damages due to transport. The resistor is made by ceramic parts, accidental fall can damage it, handle with care.
Disclaimer
Every effort has been made to ensure that the information in this datasheet is accurate. Fairfild is not responsible for printing or clerical errors. All properties and characteristics mentioned in this datasheet are only for informational purposes. The information in this datasheet is offered solely for your consideration and should not be taken as a warranty or representation for which we assume legal responsibility. The customer bears all responsibility for use and application of Fairfild products. There is no responsibility of the manufacturer for any damage to persons and properties in case of improper use. Fairfild reserves the right to change specifications without prior notice.
Every effort has been made to ensure that the information in this datasheet is accurate. Fairfild is not responsible for printing or clerical errors. All properties and characteristics mentioned in this datasheet are only for informational purposes. The information in this datasheet is offered solely for your consideration and should not be taken as a warranty or representation for which we assume legal responsibility. The customer bears all responsibility for use and application of Fairfild products. There is no responsibility of the manufacturer for any damage to persons and properties in case of improper use. Fairfild reserves the right to change specifications without prior notice.
Copyright
This datasheet is subject to copyright. Fairfild reserves all rights of translation in any language, reprinting, re-use of illustrations.
No part of this publication may be reproduced or transmitted in any form or by any means, electronic, mechanical, photocopying, without the written permission of the copyrighted owner Fairfild, Italy. Violations may be subject to legal proceedings involving monetary damages as well as compensation for costs and legal fees under Italian copyright law and regulation within the European Union.
This datasheet is subject to copyright. Fairfild reserves all rights of translation in any language, reprinting, re-use of illustrations.
No part of this publication may be reproduced or transmitted in any form or by any means, electronic, mechanical, photocopying, without the written permission of the copyrighted owner Fairfild, Italy. Violations may be subject to legal proceedings involving monetary damages as well as compensation for costs and legal fees under Italian copyright law and regulation within the European Union.
Ordering information
RMS/Y M RRRR 5% (mica)
Y R : adjustable version
N : not-inductive version
MICA (at the end of description) :
M Model5,6,7,8,9,10
RRRR Resistance value (nominal at 20°C)
Example
RMSN 5 15R 5%
RMS is the name of the product
N means the resistor is made in not inductive version
15R means 15 Ω that is the nominal ohmic value at 20°C
5% is the tolerance on the ohmic value, in this case the value of the resistor is accepted when is within 14.25 Ω ÷ 15.75 Ω
Note: tolerance on ohmic value for adjustable resistors is normally – 0+15%; tolerance on ohmic value for standard resistor is normally ±5%
Picture at page 1 refers to RMS 6 Axial Axial stainless steel bar.
RMS/Y M RRRR 5% (mica)
Y R : adjustable version
N : not-inductive version
MICA (at the end of description) :
M Model5,6,7,8,9,10
RRRR Resistance value (nominal at 20°C)
Example
RMSN 5 15R 5%
RMS is the name of the product
N means the resistor is made in not inductive version
15R means 15 Ω that is the nominal ohmic value at 20°C
5% is the tolerance on the ohmic value, in this case the value of the resistor is accepted when is within 14.25 Ω ÷ 15.75 Ω
Note: tolerance on ohmic value for adjustable resistors is normally – 0+15%; tolerance on ohmic value for standard resistor is normally ±5%
Picture at page 1 refers to RMS 6 Axial Axial stainless steel bar.
